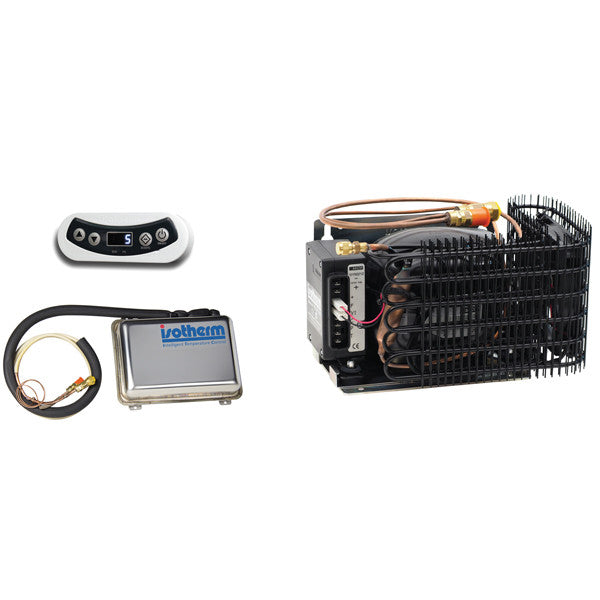

Isotherm refrigerator/freezer unit 3201 control ITC, max 125L

Isotherm refrigerator/freezer unit with ITC control is the latest to get lower power consumption on a refrigerator unit

The electronics detect if there is any external charge, such as a solar panel, motor run, etc. When charge is available, the compressor revs up and cools down the magazine or builds up extra cold in the food, so-called "overcooling". Then the temperature is lowered a further 3 degrees below the set value. However, not below 0 degrees, this as a temperature sensor monitors the system so this cannot happen.

The ITC Digital Display clearly shows and controls the temperature in the cooled space from the outside. Thanks to a temperature sensor in the space, the electronic control unit senses the actual air temperature and processes it in combination with the user's selected settings to determine the operation of the compressor. It is easy to read set or actual temperature, selection of the compressor's operating mode setting (ITC, Eco and cooling mode), and selection of 3 battery charge levels. By being able to set different levels when the compressor should rev up, ITC works great with lithium batteries.

· Accumulator tank: 2
· Compressor: Secop (Danfoss) BD50F
· Voltage: 12/24V DC
· Compressor dimensions (W x H x D): 300 x 160 x 175 mm
· Evaporator dimensions (W x H x D): 300 x 210 x 60 mm
· Thermostat: ITC+

The system should only be installed by certified refrigeration technicians.
